An innovative, foldable container system designed for mobility and rapid deployment. Ideal for emergency response housing, temporary offices, and modular facilities. Available in configurations like:

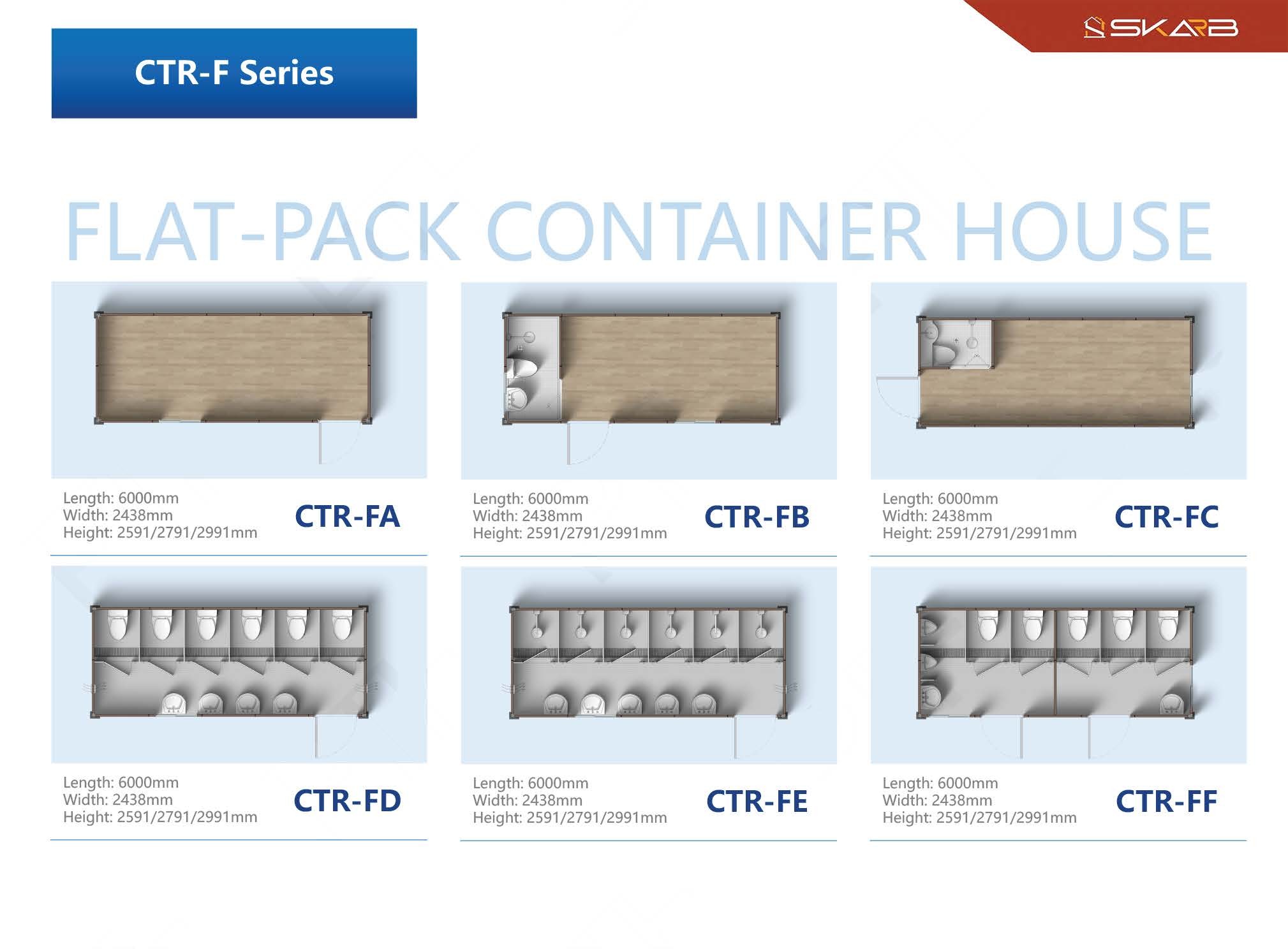

- CTR-FA to CTR-FE: Including dormitories, bathrooms, office units, and custom layouts.

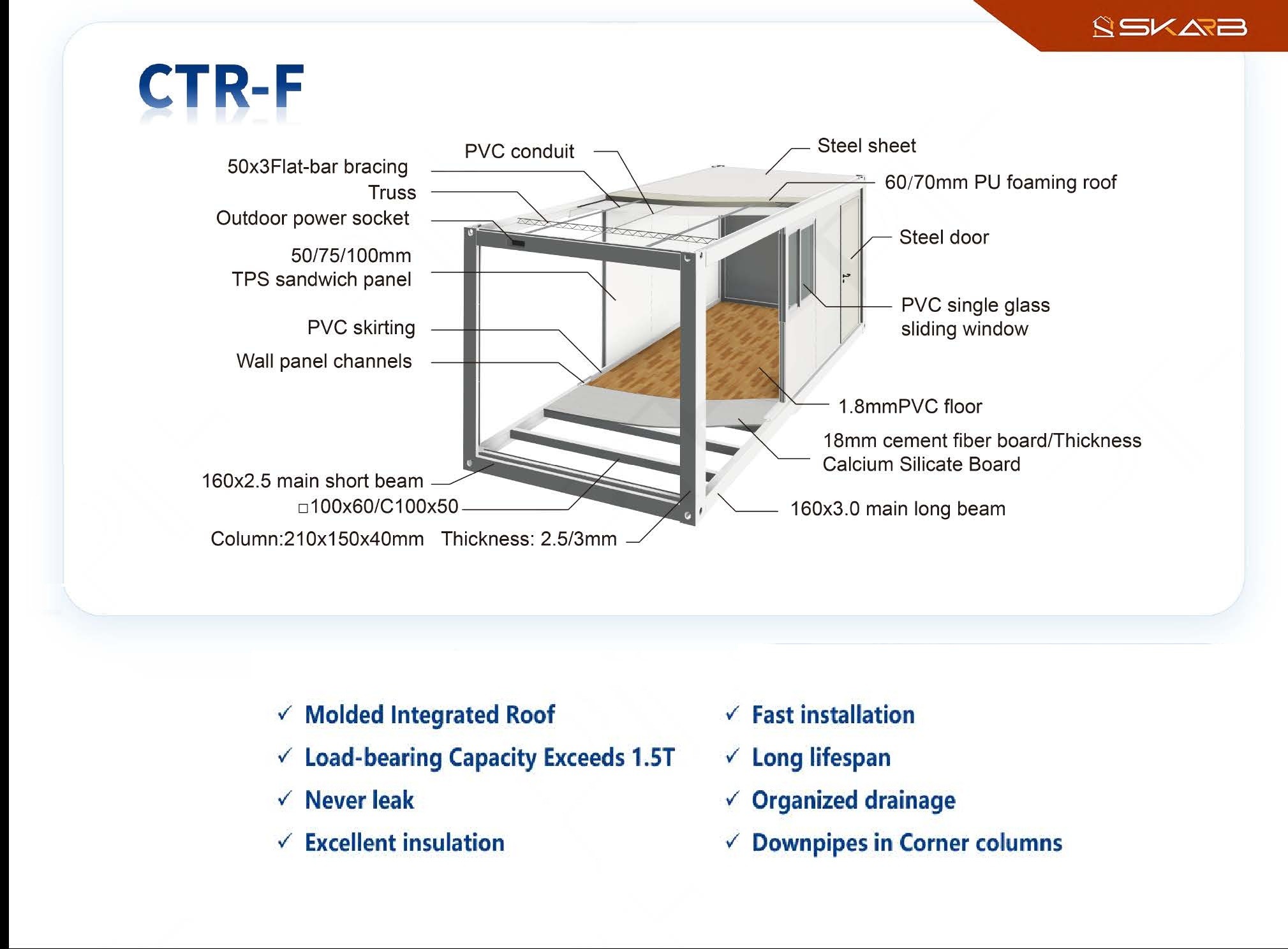

- Construction Highlights: PU sandwich panels, galvanized steel frames, integrated insulation, and fast power/water installation.
Project Parameters
• Product Model: CTR-FA
• Size: 6000mm*2438mm*2591/2791/2991mm
• Steel frame: SGH440, surface treatment: hot dip galvanized + spray coated
• Roof Panel: PU foam integral molding, thickness: 60/70mm
• Floor: 1.8mm thickness PVC+18mm thickness cement fiber board/calcium silicate board
• Wall panel:50/75/100mm sandwich panel, core material: TPS, PU, rockwool
• Power: IEC, CE, UL
• Wind load: 210km/h
• Frame color: Red, blue, medium grey, white grey
• Packaging method: 40ft high cube container/SOC
- Date: June 25, 2025
- Layout PU sandwich panels
- Design Code: CTR-F
- Created By: Maya Construction
